Short answer: a 24g label identifies nominal CO₂ fill; it does not prove that a cartridge fits, seals, punctures or deploys correctly in an inflatable protective vest. Before an OEM order, control the exact vest and inflator model, thread or neck, sealing and puncture geometry, installed envelope, fill tolerance, leakage criteria, sample-deployment test, evidence package and change-control plan.
Why “24g” is not a complete airbag-vest cartridge specification
Searches for a 24g CO2 cartridge for airbag vests often start with a label on an old cartridge or a line in a vest manual. That is useful identification information, but it is not enough to release a new supplier for production.
The 24g figure describes nominal carbon-dioxide fill. It does not define outside diameter, overall length, water capacity, thread diameter and pitch, thread tolerance, neck length, shoulder profile, sealing face, puncture surface, installed depth or production tolerance. Two cartridges can both be sold as “24 gram threaded” and still behave differently in the same inflator.
The current PopularGas 24g CO₂ cartridge page lists catalogue reference values and multiple possible interfaces, each subject to an approved drawing. Those values help a buyer start a conversation; they must not be copied into a purchase order without confirming the exact model. The airbag-vest application page follows the same device-first principle.
An inflatable protective vest is a system. The cartridge, inflator body, firing or activation mechanism, seal, gas path, bladder, garment, trigger logic and user instructions work together. A cartridge supplier can manufacture and inspect one component to an agreed specification. The vest manufacturer or responsible product owner must validate the complete system for the claimed use and destination market.
The six-point 24g CO₂ cartridge OEM checklist
1. Identify the exact vest, inflator and activation method
Start with the device, not the cartridge catalogue. Record whether the vest is intended for motorcycle, equestrian, industrial or another protective application. Add the exact vest model, inflator model, activation method, current approved cartridge reference and destination market.
This matters because mechanically activated and electronically detected systems may use different hardware, timing logic and validation methods. Even within one category, different generations of a vest can use different inflators. A request that says only “24g cartridge for airbag vest” leaves the most important compatibility facts undefined.
If the current part is unavailable, send a controlled drawing or at least two representative cartridges from an accepted lot. A photograph can support identification, but it cannot reliably control thread pitch, sealing geometry, puncture depth or production tolerances.
2. Control the thread, neck, seal and puncture interface
A thread name alone is not a complete interface. The drawing should define nominal thread diameter, pitch, form, tolerance class, usable thread length, neck diameter, shoulder position, seating face and any required installation torque. Also document whether a separate seal is used and which surface creates the seal.
The puncture interface is equally important. The firing pin must reach the intended surface, open the cartridge as designed and allow gas to enter the inflator path without unsafe obstruction. Control puncture-surface location, end geometry, material condition and the relationship between installed depth and firing-pin travel.
A cartridge may screw in successfully and still sit too shallow, too deep or against the wrong surface. “The threads start” is therefore not a pass criterion. Use the threaded CO₂ cartridge guide to organize the interface fields, then let the approved drawing govern.
3. Check the installed envelope and retention
Record overall length, body outside diameter, shoulder transition and any keep-out zones created by the inflator cover, vest fabric, bladder, wiring, tether, straps or folded storage position. The cartridge must fit during assembly, normal wear, storage and activation without unwanted contact or loading.
Retention also needs a defined check. Confirm engagement length, seating position, resistance to loosening under the program’s handling and vibration conditions, and the correct installation method. Do not invent a universal torque value; use the inflator owner’s approved requirement.
Production tolerances matter more than one perfect sample. Mark the dimensions that are critical to sealing, puncture and clearance, and define measurable acceptance limits rather than relying on nominal values alone.
4. Define fill, leakage and release requirements
Specify nominal 24g CO₂ fill and the accepted tolerance for the approved program. Agree how fill is measured, how leakage is screened, what sampling plan applies and which lot records will be delivered. “24g” without a tolerance and inspection method is not a complete purchasing requirement.
Do not replace these controls with a generic pressure claim. CO₂ pressure varies with temperature, while cartridge test pressure, burst-related values and inflator operating requirements describe different things. The responsible engineering team should define the conditions and acceptance criteria that matter for the vest system.
Release performance belongs in the device test. The buyer should evaluate whether the approved samples activate, discharge and inflate the intended system according to the vest owner’s protocol, including any specified environmental conditioning.
5. Match finish, storage and packaging to the use environment
Protective vests may be stored in vehicles, tack rooms, warehouses, retail packaging or humid outdoor conditions. Define the expected storage time, temperature and humidity exposure, corrosion requirement, cartridge finish and packaging protection. A clean appearance at shipment is not proof of long-term suitability.
For private-label programs, control cartridge marking, warning copy, traceability, unit packaging, carton strength, barcode and artwork revision. Keep decorative customization separate from safety-critical dimensions. A logo change must never be allowed to hide an unapproved cartridge or inflator change.
6. Agree the evidence package and change control
Ask for evidence tied to the exact cartridge model, manufacturing route, lot or shipment. Depending on the program, this may include the approved drawing, material information, SDS, dimensional report, fill and leakage results, inspection plan, packaging specification, lot traceability and available model-specific certificates.
A certificate logo is not evidence by itself. Check the holder, issuer, standard, product scope, market, validity and exact claim. The PopularGas Quality & Compliance Evidence Hub provides a practical request structure.
Finally, define change control. A supplier should not change critical material, interface, puncture surface, fill range, coating, production site or inspection method without the review level agreed with the responsible product owner.
| Decision | Buyer input | Release evidence |
|---|---|---|
| Application | Vest and inflator model | Controlled device record |
| Interface | Drawing or accepted samples | Approved drawing and dimensional report |
| Fill and leakage | Nominal 24g plus program limits | Lot test record |
| Function | Device test protocol and conditions | Approved deployment report |
| Environment | Storage, corrosion and packaging scope | Applicable test and packaging record |
| Commercial | Trial quantity, annual volume, destination and Incoterm | Approved quotation and revision |
How to validate 24g samples before a 10,000-piece order
A large order should not be the first functional test. Use a staged release that makes the buyer’s decision traceable:
- Application intake: record the vest, inflator, activation method, destination, forecast and required evidence.
- Gap review: compare the old part, drawing, sample and catalogue data; list every unresolved interface or tolerance.
- Draft specification: define measurable interface, body, fill, finish, marking, packaging and inspection requirements.
- Prototype or trial lot: manufacture clearly identified samples against the draft specification.
- Incoming inspection: verify critical dimensions, fill and evidence before samples enter the vest test.
- Device validation: test installation, retention, activation, gas release, inflation behaviour and post-activation condition in the exact vest system.
- Golden-sample approval: freeze the accepted drawing revision, sample lot, evidence package and approver.
- Bulk release: apply the agreed inspection, traceability and change-control plan to volume production.
This sequence takes more work than approving from a photo, but it is far cheaper than discovering a mismatch after cartridges, private-label packaging and export cartons are complete. When the original drawing is unavailable, use the CO₂ cartridge sample-matching workflow as a controlled starting point.
Standards, compliance and shipping: keep the scopes separate
Application standards depend on the vest category and destination market. BS EN 1621-4:2013 covers requirements and test methods for mechanically activated inflatable protectors for motorcycle riders; BSI lists the current edition as under review and also shows an active revision project. A draft revision is not the same as a published replacement.
For equestrian applications, AFNOR NF S72-800, published in March 2022, addresses protective airbag vests for riders and drivers, including mechanically or electronically detected systems. For products placed on the EU market as personal protective equipment, Regulation (EU) 2016/425 sets requirements for PPE design and manufacture.
These references define product and market contexts; they do not make a loose 24g cartridge automatically “certified.” The responsible vest program must determine the applicable standard, conformity route and evidence for the complete product, and then flow relevant component requirements into the cartridge specification.
Transport is a separate decision. The UNECE Model Regulations, Revision 24 provide the international framework used by modal and national dangerous-goods rules, including entries and provisions relevant to small gas receptacles. The actual classification, packaging, marking, documentation and carrier acceptance depend on the cartridge design, gas, capacity, quantity, route and transport mode.
Before freight booking, give a qualified dangerous-goods provider the exact product and consignment details. Do not treat a supplier web page or a generic UN number as universal shipment approval. The PopularGas shipping checklist can help organize the required questions.
A quote-ready RFQ for 24g airbag-vest cartridges
For an accurate technical and commercial review, include:
- airbag-vest category, brand/model and inflator model;
- activation method and current approved cartridge reference;
- controlled drawing or at least two representative samples;
- nominal 24g fill plus required tolerance and leakage criteria;
- thread, neck, seal, puncture surface, body diameter and total length;
- device test protocol, environmental conditions and acceptance criteria;
- surface finish, storage, corrosion and packaging requirements;
- marking, private-label artwork, barcode and traceability needs;
- required documents, standard scope and destination market;
- sample quantity, first order, annual forecast, delivery target and Incoterm;
- shipping destination, route and transport mode.
PopularGas can review a 24g cartridge program against an exact drawing or physical sample. A responsible quotation should separate confirmed requirements from assumptions and identify which tests or documents still require agreement.

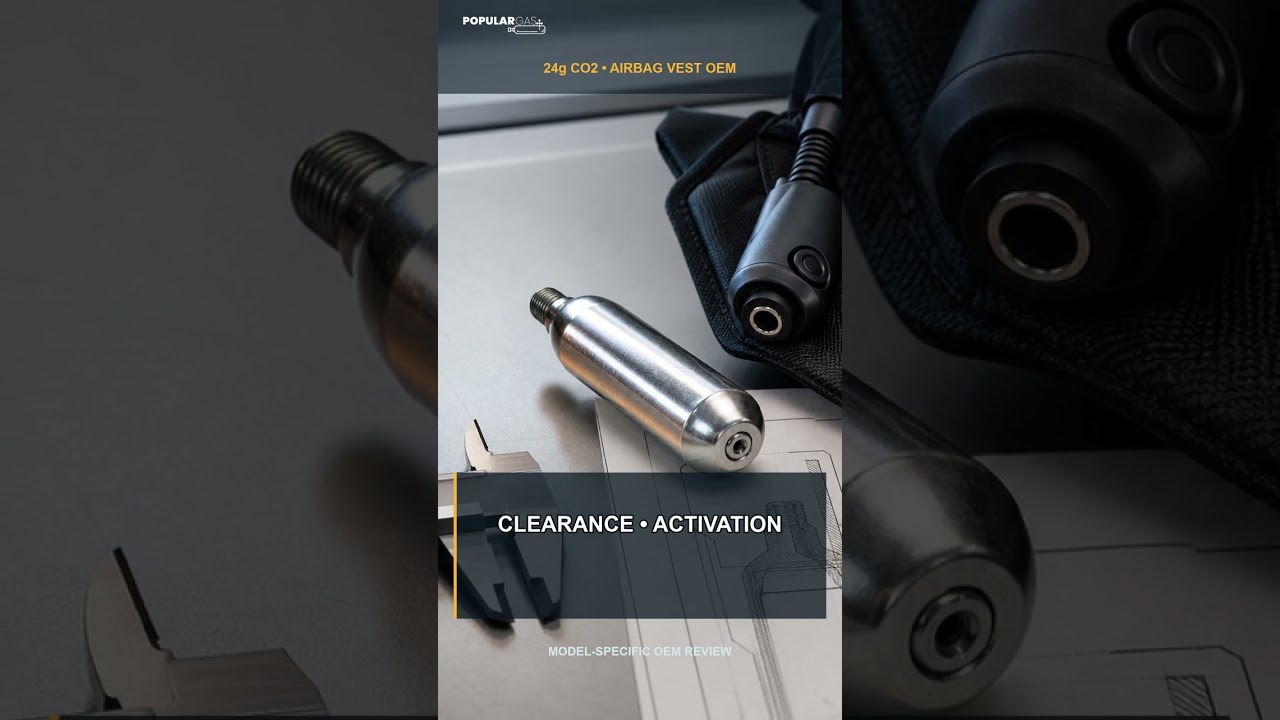

Watch the 24g buyer checklist
For a model-specific review, attach the vest or inflator drawing, accepted cartridge sample and destination-market requirements to your RFQ.
Frequently asked questions
Does every 24g CO₂ cartridge fit an airbag vest?
No. Nominal fill does not prove mechanical fit, sealing, puncture geometry, installed clearance or deployment performance.
Is a thread size enough for an OEM order?
No. Control thread diameter, pitch, form, tolerance and length plus the neck, shoulder, sealing face, puncture surface, body dimensions and installed depth.
Can a supplier copy the old cartridge from a photograph?
A photograph helps identify the part, but production approval requires a controlled drawing or representative samples, measurable inspection limits and device validation.
What should be tested in the exact vest?
The responsible product owner should define the protocol. Typical checks include installation, retention, activation, gas release, inflation behaviour and post-activation condition under the required environments.
Does EN 1621-4 or NF S72-800 certify the cartridge?
Not automatically. These standards address defined protective products and tests. The exact certificate and scope must support any claim, while cartridge compatibility still requires a controlled specification and system validation.
Can PopularGas support private-label packaging?
Marking and packaging can be reviewed after the cartridge specification, artwork, volume, traceability, destination and shipment plan are defined.
What is the fastest route to a reliable quote?
Send the exact vest and inflator model, drawing or samples, annual quantity, destination, required evidence, packaging, delivery target and Incoterm.
Turn “24g threaded” into an approved OEM specification
Share the inflator, drawing or sample, test plan, annual volume, destination and evidence list. PopularGas will review the confirmed scope before quoting volume production.
Reviewed by the PopularGas Compliance Editorial Team on August 9, 2026. This procurement guide is not a device approval, transport classification or legal opinion. Final cartridge, vest and shipment acceptance must follow the responsible product owner, applicable authority and qualified logistics provider.
