Short answer: a 38g label identifies nominal CO₂ fill, not automatic life-jacket compatibility. An OEM buyer must still approve the cartridge body, thread or neck, sealing face, puncture geometry, installed clearance, fill tolerance, corrosion requirements, quality evidence and performance in the exact inflator.
Why “38g” is not a complete life-jacket cartridge specification
Searches for a 38g CO2 cartridge for life jackets often begin with a replacement label, an old cartridge or a reference from an inflator manual. That is a reasonable starting point. It is not an engineering release.
The 38g figure describes nominal carbon-dioxide fill. It does not, by itself, define the outside diameter, total length, thread diameter and pitch, neck length, shoulder profile, sealing surface, puncture point, production tolerance or installed envelope. Two cartridges can both be described as “38 gram” and still fail to fit, seal or pierce in the same inflator.
The current PopularGas 38g CO₂ cartridge page uses a 30 mm body reference and deliberately requires interface and sample matching. Treat that value as a catalogue reference, not permission to infer every other dimension. The approved drawing and validated sample must control the purchase order.
This distinction matters more in a safety-inflation application than in a generic catalogue purchase. A cartridge, inflator head, firing mechanism, seal, bladder, oral-inflation backup and garment together form a system. The supplier can manufacture the cartridge to an agreed specification; the life-jacket manufacturer or responsible product owner must confirm that the complete system meets its applicable performance and market requirements.
The seven-point 38g CO₂ cartridge compatibility checklist
1. Identify the exact life jacket and inflator
Start with the device, not the cartridge catalogue. Record the life-jacket model, inflator model, activation method, current approved cartridge reference and destination market. If the existing part is obsolete or unavailable, document that fact rather than asking a new supplier to “make the same one” from a photograph.
Useful inputs include the inflator manufacturer’s drawing, the device bill of materials, service instructions and at least two representative cartridges from a known accepted lot. If drawings are unavailable, PopularGas can review physical samples, but sample matching still needs a controlled dimensional record and functional approval.
2. Control the thread, neck and sealing interface
A thread description is not a complete interface definition. Confirm nominal diameter, pitch, thread form, tolerance, thread length, neck diameter, shoulder position and sealing face. Also confirm how the cartridge seats in the inflator and whether installation torque or a sealing component is specified.
Buyers sometimes submit only a phrase such as “threaded 38g” or a fractional thread size. That leaves too much room for mismatch. The threaded CO₂ cartridge buyer guide explains the fields that should appear on the drawing. Use the actual drawing or verified sample as the governing reference.
3. Check puncture geometry and activation clearance
The puncture interface determines whether the firing pin reaches the correct surface, opens the cartridge as intended and allows gas to enter the inflator path. Buyers should define the puncture surface location, neck-end geometry, material condition and any relevant clearance around the firing mechanism.
Installed length matters here. A cartridge may screw into an inflator yet sit too shallow or too deep for the intended activation geometry. A fit check must therefore include full installation, engagement, retention and activation—not merely whether the threads start.
4. Confirm body dimensions and the installed envelope
Record outside diameter, overall length, body profile, shoulder transition and any keep-out zones created by the life-jacket cover, bladder, straps or folds. The cartridge must fit the inflator and the packed garment without unwanted contact or stress.
Do not assume a nominal 30 mm body reference is universal across every 38g design. Production tolerances also matter. The drawing should state acceptance limits, not only nominal values, and the buyer should decide which dimensions are critical to function.
5. Define fill, leakage and corrosion requirements
Specify nominal CO₂ fill and the accepted tolerance for the approved program. Agree how fill is verified, how leakage is screened, what sampling plan applies and which records will be available for the lot. Avoid substituting a generic “working pressure” claim for a product-specific specification: CO₂ behaviour varies with temperature, while cartridge proof, burst and device operating values describe different things.
Marine and outdoor use can expose components to humidity, salt, temperature cycling and long storage. Define the surface finish, corrosion expectation, packaging protection and shelf-life responsibilities that apply to the product. A visually bright cartridge on the day of shipment is not a complete corrosion-control plan.
6. Agree the evidence package
Ask for evidence that is tied to the exact model, manufacturing route, batch or shipment. Depending on the project, this may include an approved drawing, material information, SDS, inspection records, fill and leakage results, dimensional reports, packaging specification, lot traceability and available certificates.
A certificate logo is not a substitute for scope review. Check the holder, issuer, standard, product coverage, market, validity and the exact claim being made. The PopularGas Quality & Compliance Evidence Hub provides a practical request list.
7. Validate samples in the exact inflator
Sample approval is the decision gate. Test fit, engagement, sealing, puncture or activation, gas discharge, inflation behaviour and post-activation condition in the intended device. Use the device manufacturer’s or responsible engineering team’s test method and required environmental conditions.
Record the approved cartridge drawing revision, sample lot, device model, test result and approver. Retain a golden sample where appropriate. Bulk production should be released only after the specification and the performance evidence agree.
| Control point | What to send the supplier | Approval evidence |
|---|---|---|
| Device | Life-jacket and inflator model | Controlled application record |
| Interface | Drawing or representative samples | Dimensional report |
| Fill | Nominal 38g plus agreed tolerance | Lot fill/leakage record |
| Environment | Storage and corrosion expectations | Applicable test result |
| Function | Device test method and conditions | Approved deployment report |
| Commercial | Quantity, forecast, packaging, destination, Incoterm | Approved quote and specification revision |
A safer sample-validation workflow
- Intake: submit the device model, cartridge reference, drawing or samples, forecast, destination and required evidence.
- Gap review: list missing dimensions and any conflicts between labels, old records, samples and supplier catalogue data.
- Controlled specification: agree the measurable interface, body, fill, finish, marking and packaging requirements.
- Trial production: manufacture a clearly identified sample lot against the draft specification.
- Device validation: test samples in the exact inflator using the responsible product owner’s protocol.
- Golden-sample approval: freeze the accepted drawing revision, sample and evidence package.
- Bulk control: apply the agreed inspection plan, lot traceability and change-control process.
This sequence is slower than approving from a photograph, but much faster than diagnosing a mismatch after cartridges, labels and export cartons have already been produced. For projects without a reliable drawing, see the CO₂ cartridge sample-matching workflow.
Documents, standards and shipping: define the exact scope
Life-jacket and personal-flotation-device requirements vary by product type and market. ISO 12402-7:2020 covers minimum construction and performance requirements for materials and components of personal flotation devices, with related test methods. ISO records show that the published 2020 edition is under revision and that a new work item was registered in July 2026. A draft or work item does not replace the currently applicable published and market-specific requirements.
Do not describe an individual cartridge as “ISO 12402 certified” unless the precise certificate and scope support that statement. The responsible life-jacket program should identify which standard, approval scheme and evidence apply to the complete product and its components.
Shipping is a separate approval stream. Carbon-dioxide cartridges may fall under dangerous-goods rules or a defined exception depending on the receptacle, capacity, quantity, packaging, route and mode. In the United States, PHMSA 49 CFR §173.306 addresses limited quantities of compressed gases. PHMSA has also published an interpretation concerning small gas cartridges used to inflate life-saving appliances. These sources illustrate why the actual consignment must be reviewed; they are not universal shipping clearance for every 38g cartridge.
Before booking freight, give the qualified dangerous-goods forwarder the exact cartridge specification, gas, receptacle capacity, quantity, packaging and route. Use the PopularGas CO₂ cartridge shipping checklist to organize the discussion.
A quote-ready RFQ for 38g life-jacket cartridges
A useful RFQ reduces technical ambiguity and lets a supplier quote the correct development work, sampling, packaging and logistics basis. Include:
- life-jacket brand/model and inflator model;
- current approved cartridge reference, controlled drawing or two representative samples;
- nominal 38g fill and required tolerance;
- thread/neck, sealing face, puncture geometry, body diameter and overall length;
- required finish, corrosion exposure and storage conditions;
- sample-validation method, quantity and acceptance criteria;
- marking, private-label packaging, carton and barcode needs;
- required documents and destination-market scope;
- trial quantity, annual volume, delivery target and preferred Incoterm;
- shipment destination and transport mode.
PopularGas can review a model-specific 38g program against a drawing or sample. The quotation should state what is confirmed, what still requires validation and which evidence is available for the proposed product and shipment.

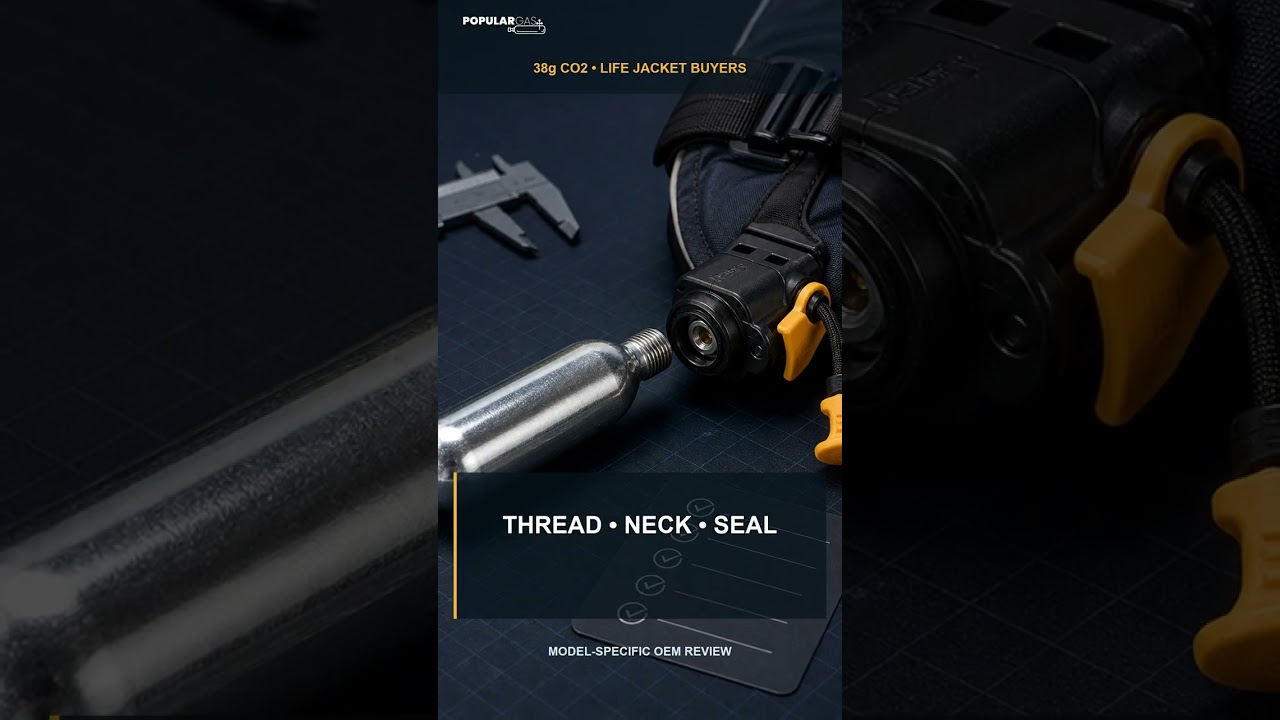

Watch the 30-second buyer checklist
Prefer a written specification review? Use the RFQ link below and attach the device drawing or sample information.
Common purchasing mistakes
- Approving from gram size: nominal fill does not prove mechanical or functional fit.
- Approving from a thread label: the full neck, seal and puncture interface still needs control.
- Using brand equivalence language: a buyer reference is not proof of authorized, original or drop-in replacement status.
- Skipping environmental requirements: marine storage and corrosion exposure should be defined before coating and packaging are approved.
- Requesting “all certificates”: evidence should be tied to the exact model, market, batch and shipment.
- Booking freight too early: classification and carrier acceptance need the actual product and route.
- Freezing price before the specification: an apparently low price is not comparable if the interface, testing or packaging scope differs.
Frequently asked questions
Is every 38g CO₂ cartridge compatible with a life jacket?
No. The 38g label describes nominal fill. Compatibility depends on the exact inflator interface, cartridge geometry, tolerances and validated performance.
Is thread size enough to order a replacement?
No. Confirm thread diameter, pitch and tolerance plus neck length, shoulder, sealing face, puncture geometry, body dimensions and installed clearance.
Can a supplier copy an old cartridge from a photo?
A photo can support identification, but it is not sufficient for production approval. Use a controlled drawing or representative physical samples followed by device validation.
What tests should a buyer request?
The exact plan is program-specific. Common controls include dimensional inspection, fill verification, leakage screening, corrosion-related checks and functional deployment in the intended inflator under the responsible product owner’s conditions.
Does a certificate prove cartridge compatibility?
No. A certificate must be checked for holder, issuer, standard, product and market scope. Device compatibility still requires specification and functional validation.
Can PopularGas provide OEM or private-label packaging?
OEM marking and packaging can be reviewed after the cartridge specification, order volume, artwork, destination requirements and shipment plan are defined.
What should I send for an accurate quote?
Send the device and inflator model, drawing or samples, annual volume, destination, packaging, required documents, delivery target and Incoterm.
Turn “38g” into an approved cartridge specification
Share the life-jacket inflator, drawing or sample, annual volume, destination and evidence list. PopularGas will review the interface and quote the confirmed scope.
Reviewed by the PopularGas Compliance Editorial Team on August 9, 2026. This article is a procurement guide, not a device approval, transport classification or legal opinion. Final cartridge, life-jacket and shipment acceptance must follow the responsible product owner, applicable authority and qualified logistics provider.
